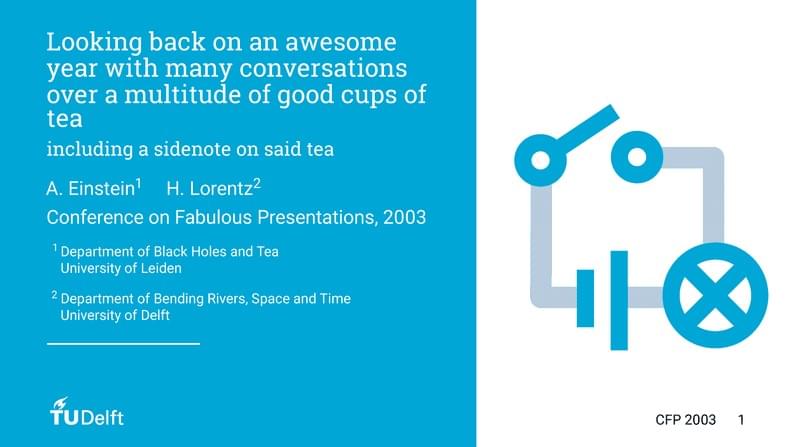

Template for presentation following the TU Delft corporate design.
The blue bar can be vertical or horizontal. The template covers the features of the presentation template by Maarten Abbink and Erwin Walraven, plus explanation of some additional useful features.
% !TeX document-id = {2870843d-1baa-4f6a-bd0a-a5c796104a32}
% !BIB TS-program = biber
% !TeX encoding = UTF-8
% TU Delft beamer template
\documentclass[aspectratio=43]{beamer}
\usepackage[english]{babel}
\usepackage{csquotes}
\usepackage{calc}
\usepackage[absolute,overlay]{textpos}
\usepackage{graphicx}
\usepackage{subfig}
\usepackage{mathtools}
\usepackage{amsfonts}
\usepackage{amsthm}
\usepackage{comment}
\usepackage{siunitx}
\usepackage{MnSymbol,wasysym}
\usepackage{array}
\usepackage{qrcode}
\setbeamertemplate{navigation symbols}{} % remove navigation symbols
\mode<presentation>{\usetheme[verticalbar=false]{tud}}
% BIB SETTINGS
\usepackage[
backend=biber,
giveninits=true,
maxnames=30,
maxcitenames=20,
uniquename=init,
url=false,
style=authoryear,
]{biblatex}
\addbibresource{bibfile.bib}
\setlength\bibitemsep{0.3cm} % space between entries in the reference list
\renewcommand{\bibfont}{\normalfont\scriptsize}
\setbeamerfont{footnote}{size=\tiny}
\renewcommand{\cite}[1]{\footnote<.->[frame]{\fullcite{#1}}}
\setlength{\TPHorizModule}{\paperwidth}
\setlength{\TPVertModule}{\paperheight}
\newcommand{\absimage}[4][0.5,0.5]{%
\begin{textblock}{#3}%width
[#1]% alignment anchor within image (centered by default)
(#2)% position on the page (origin is top left)
\includegraphics[width=#3\paperwidth]{#4}%
\end{textblock}}
\newcommand{\mininomen}[2][1]{{\let\thefootnote\relax%
\footnotetext{\begin{tabular}{*{#1}{@{\!}>{\centering\arraybackslash}p{1em}@{\;}p{\textwidth/#1-2em}}}%
#2\end{tabular}}}}
% to solve spurious empty pages before a frame containing footnotes
\setbeamertemplate{footnote}{%
\makebox[1em][l]{\insertfootnotemark}%
\begin{minipage}{\dimexpr\linewidth-1em}
\usebeamerfont{footnote}\insertfootnotetext
\end{minipage}\vskip 0pt}
\title[]{The Title of the Presentation}
\institute[]{Delft University of Technology, The Netherlands}
\author{First Author \and Second Author}
%\date{}
\begin{document}
\section{Introduction}
{
\setbeamertemplate{footline}{\usebeamertemplate*{minimal footline}}
\frame{\titlepage}
}
\begin{frame}[fragile]{Example frame 1} % some commands, e.g. \verb require [fragile]
This is the first frame.
You can set the blue bar vertical using the option \verb|\usetheme[verticalbar=true]{tud}|.
Set the aspect ratio to 4:3 with the
documentclass option aspectratio=43. Use aspectratio=169 for wide screen (16:9).
\end{frame}
\section{Examples}
\begin{frame}{Example frame 2}
\begin{block}{Block}
\begin{itemize}
\item item 1
\item item 2
\end{itemize}
\end{block}
\begin{exampleblock}{Example}
\begin{enumerate}
\item Sugar in a stirred cup of tea gathers in the middle.
\item Rivers often take a detour through flat terrain.
\end{enumerate}
\end{exampleblock}
\begin{alertblock}{Alert}
Rivers and sweet tea do unexpected things.\cite{Einstein1926}
\end{alertblock}
\end{frame}
\begin{frame}{Mass--energy equivalence}
They say every formula you add to a presentation, will reduce your audience by \SI{50}{\percent}. A simple yet effective way to mitigate this effect, is adding a compact nomenclature to the slides containing formulae.
\[E=mc^2\]
If you find this is taking up too much of your precious space, than you are doing something wrong, and it is not adding this little nomenclature.
The optional argument specifies the number of column pairs.
\mininomen[2]{% number of columns
$E$ & Energy (\unit{J}) & $m$ & Mass (\unit{kg}) \\
$c$ & Speed of light in vacuum (\unit{m/s})
}
\end{frame}
\begin{frame}{columns}
\begin{columns}[onlytextwidth]
\begin{column}{.5\textwidth}
first column
\end{column}
\begin{column}{.5\textwidth}
% square filling the column
\textcolor{tudCyan}{\rule{1\columnwidth}{1\columnwidth}}
% place an image
% horizontal position = 73%
% vertical position = 45%
% width = 40% of page
\absimage{.73, .45}{.40}{tud-logo.pdf}
\end{column}
\end{columns}
\end{frame}
\section{Conclusion}
\begin{frame}[fragile]{animation}
\vfill
Some commands take optional arguments in the form of \verb|<x-y>|,
where \verb|x| is the first `sub-frame' on which the context is shown,
and \verb|y| is the last. \verb|x| or \verb|y| can be replaced by \verb|+|,
referring to `the next sub-frame'.
\vfill
\begin{columns}[onlytextwidth]
\begin{column}{.5\textwidth}
\begin{enumerate}
\item<+-> uncovered\ldots
\item<+-> one\ldots
\item<+-> by\ldots
\item<+-> one.
\end{enumerate}
\end{column}
\begin{column}{.5\textwidth}
Using only:\only<1>{1}\only<2>{2}\only<3>{3}
Using onslide:\onslide<1>{1}\onslide<2>{2}\onslide<3>{3}
Using pause:\pause1\pause2\pause3
\end{column}
\end{columns}
\vfill
For more advanced animations, see \S 14 of the manual:\\
\url{https://www.ctan.org/pkg/beamer}
% \url{https://www.ctan.org/pkg/animate}\\
% \url{https://www.ctan.org/pkg/media9}
\vfill
% \transduration{2} automatic progression of slides
\transpush<1>
\end{frame}
\begin{frame}
Thanks for your attention.
A digital version of this presentation can be found here:
\vfill
\url{https://gitlab.com/novanext/tudelft-beamer}
\vfill
\centering
\qrcode{https://gitlab.com/novanext/tudelft-beamer}
\vfill
\end{frame}
\begin{frame}[allowframebreaks,t]{\bibname}
% the 'I' is caused by 'allowframebreaks'
\AtNextBibliography{\footnotesize}% or in the preamble \AtBeginBibliography{\small}
\printbibliography
\end{frame}
\end{document}
