Beamer presentation style for the research institution SINTEF
\begin
Discover why 18 million people worldwide trust Overleaf with their work.
Beamer presentation style for the research institution SINTEF
\begin
Discover why 18 million people worldwide trust Overleaf with their work.
\documentclass{sintefbeamer}
\usepackage{amsfonts,amsmath,oldgerm}
\newcommand{\testcolor}[1]{\colorbox{#1}{\textcolor{#1}{test}} \texttt{#1}}
\usefonttheme[onlymath]{serif}
\newcommand{\hrefcol}[2]{\textcolor{cyan}{\href{#1}{#2}}}

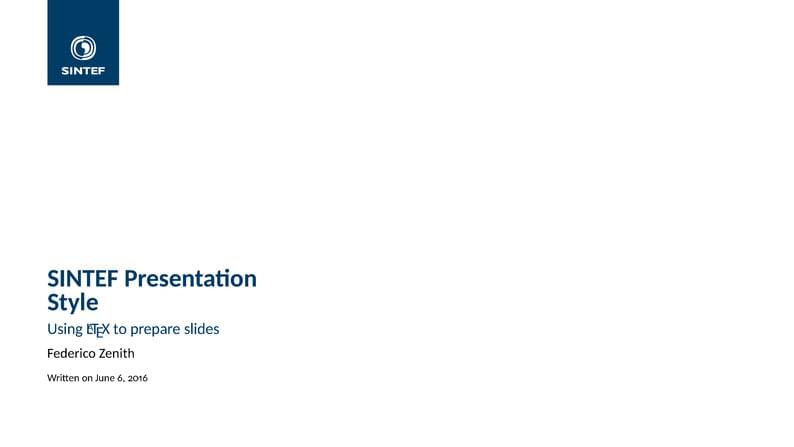

\title{SINTEF Presentation Style}
\subtitle{Using \LaTeX\ to prepare slides}
\author{\href{mailto:federico.zenith@sintef.no}{Federico Zenith}}
\date{Written on June 6, 2016}
%\titlebackground{}
\begin{document}
\maketitle
\begin{frame}{Beamer for SINTEF slides}
\begin{itemize}
\item We assume you can use \LaTeX; if you cannot,
\hrefcol{http://en.wikibooks.org/wiki/LaTeX/}{you can learn it here}
\item Beamer is one of the most popular and powerful document
classes for presentations in \LaTeX
\item Beamer has also a detailed
\hrefcol{http://www.ctan.org/tex-archive/macros/latex/contrib/beamer/doc/beameruserguide.pdf}{user manual}
\item Here we will present only the most basic features to get you up to speed
\end{itemize}
\end{frame}
\begin{frame}{Beamer vs. PowerPoint}
Compared to PowerPoint, using \LaTeX\ is better because:
\begin{itemize}
\item It is not What-You-See-Is-What-You-Get, but
What-You-\emph{Mean}-Is-What-You-Get:\\
you write the content, the computer does the typesetting
\item Produces a \texttt{pdf}: no problems with fonts, formulas,
program versions
\item Easier to keep consistent style, fonts, highlighting, etc.
\item Math typesetting in \TeX\ is the best:
\begin{equation*}
\mathrm{i}\,\hslash\frac{\partial}{\partial t} \Psi(\mathbf{r},t) =
-\frac{\hslash^2}{2\,m}\nabla^2\Psi(\mathbf{r},t)
+ V(\mathbf{r})\Psi(\mathbf{r},t)
\end{equation*}
\end{itemize}
\end{frame}
\begin{frame}[fragile]{Selecting the Class}
After the last update to the graphic profile, the \texttt{sintef} theme for
Beamer has been updated into a full-fledged class.
To start working with \texttt{sintefbeamer}, start a \LaTeX\ document with the
preamble:
\begin{block}{Minimum SINTEF Beamer Document}
\verb|\documentclass{sintefbeamer}|\\
\verb|\begin{document}|\\
\verb|\begin{frame}{Hello, world!}|\\
\verb|\end{frame}|\\
\verb|\end{document}|\\
\end{block}
\end{frame}
\begin{frame}[fragile]{Title page}
To set a typical title page, you call some commands in the preamble:
\begin{block}{The Commands for the Title Page}
\begin{verbatim}
\title{Sample Title}
\subtitle{Sample subtitle}
\author{First Author, Second Author}
\date{Defaults to today's}
\end{verbatim}
\end{block}
You can then write out the title page with \verb|\maketitle|.
You can set a different background image than the default one with the
\verb|\titlebackground| command, set before \verb|\maketitle|.
In the \texttt{backgrounds} folder, you can find a lot of standard backgrounds
for SINTEF presentation title pages.
\end{frame}
\begin{frame}[fragile]{Writing a Simple Slide}
\framesubtitle{It's really easy!}
\begin{itemize}[<+->]
\item A typical slide has bulleted lists
\item These can be uncovered in sequence
\end{itemize}
\begin{block}{Code for a Page with an Itemised List}<+->
\begin{verbatim}
\begin{frame}
\frametitle{Writing a Simple Slide}
\framesubtitle{It's really easy!}
\begin{itemize}[<+->]
\item A typical slide has bulleted lists
\item These can be uncovered in sequence
\end{itemize}
\end{frame}\end{verbatim}
\end{block}
\end{frame}
\begin{frame}[fragile]{Using Colours}
\begin{itemize}[<alert@2>]
\item You can use colours with the
\verb|\textcolor{<color name>}{text}| command
\item The colours are defined in the \texttt{sintefcolor} package:
\begin{itemize}
\item Primary colour: \testcolor{sintefblue};
\item Contrast colours: \testcolor{sintefcyan}, \testcolor{sintefmagenta},
\testcolor{sintefgreen}, \testcolor{sintefyellow};
\item Additional colours: \testcolor{sintefgrey}, \testcolor{sinteflightgrey}.
\end{itemize}
\item Do \emph{not} abuse colours: \verb|\emph{}| is usually enough
\item Use \verb|\alert{}| to bring the \alert<2->{focus} somewhere
\item<2- | alert@2> If you highlight too much, you don't highlight at all!
\end{itemize}
\end{frame}
\begin{frame}[fragile]{Adding images}
\begin{columns}
\begin{column}{0.7\textwidth}
Adding images works like in normal \LaTeX:
\begin{block}{Code for Adding Images}
\begin{verbatim}
\usepackage{graphicx}
% ...
\includegraphics
[width=\textwidth]{Sintef_logo_blue}
\end{verbatim}
\end{block}
\end{column}
\begin{column}{0.3\textwidth}
\includegraphics
[width=\textwidth]{Sintef_logo_blue}\\
\end{column}
\end{columns}
\end{frame}
\begin{frame}[fragile]{Splitting in Columns}
Splitting the page is easy and common;
typically, one side has a picture and the other text:
\begin{columns}
\begin{column}{0.6\textwidth}
This is the first column
\end{column}
\begin{column}{0.3\textwidth}
And this the second
\end{column}
\end{columns}
\begin{block}{Column Code}
\begin{verbatim}
\begin{columns}
\begin{column}{0.6\textwidth}
This is the first column
\end{column}
\begin{column}{0.3\textwidth}
And this the second
\end{column}
% There could be more!
\end{columns}
\end{verbatim}
\end{block}
\end{frame}
\begin{frame}[fragile]
\frametitle{Fonts}
\begin{itemize}
\item The paramount task of fonts is being readable
\item There are good ones...
\begin{itemize}
\item {\textrm{Use serif fonts only with high-definition projectors}}
\item {\textsf{Use sans-serif fonts otherwise (or if you simply prefer them)}}
\end{itemize}
\item ... and not so good ones:
\begin{itemize}
\item {\texttt{Never use monospace for normal text}}
\item {\frakfamily Gothic, calligraphic or weird fonts: should always: be
avoided}
\end{itemize}
\end{itemize}
\end{frame}
\begin{frame}[fragile]{Look}
\begin{itemize}
\item To change the colour of the title dash, give one of the class options
\texttt{cyandash} (default), \texttt{greendash}, \texttt{magentadash},
\texttt{yellowdash}, or \texttt{nodash}.
\item To change between the light and dark themes, give the class options
\texttt{light} (default) or \texttt{dark}. It is not possible to switch
theme for one slide because of the design of Beamer---and it's probably a
good thing.
\item To insert a final slide, use \verb|\backmatter|.
\item The aspect ratio defaults to 16:9, but you can change it to 4:3 for old
projectors by passing the class option \texttt{aspectratio=43}; any other
values accepted by Beamer are also possible.
\end{itemize}
\end{frame}
\begin{frame}
\frametitle{Good Luck!}
\begin{itemize}
\item Enough for an introduction! You should know enough by now
\item If you have corrections or suggestions,
\hrefcol{mailto:federico.zenith@sintef.no}{send them to me!}
\end{itemize}
\end{frame}
\backmatter
\end{document}
