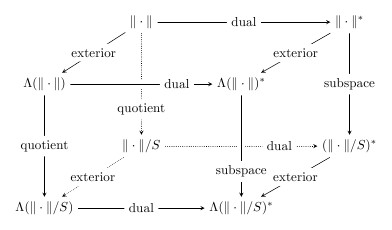

Commutative diagram showing exterior algebra on Banach Space. Based on this commutative diagram example by Stefan Kottwitz.
Commutative diagram showing exterior algebra on Banach Space. Based on this commutative diagram example by Stefan Kottwitz.
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%
% Welcome to writeLaTeX --- just edit your LaTeX on the left,
% and we'll compile it for you on the right. If you give
% someone the link to this page, they can edit at the same
% time. See the help menu above for more info. Enjoy!
%
% Note: you can export the pdf to see the result at full
% resolution.
%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% Commutative diagram with edges passing under/over
% Jan 7, 2009, Stefan Kottwitz
% http://texblog.net
\documentclass{article}
\usepackage{tikz}
\usetikzlibrary{matrix}
%%%<
\usepackage{verbatim}
\usepackage[active,tightpage]{preview}
\usepackage{subfig}
\PreviewEnvironment{tikzpicture}
\setlength\PreviewBorder{5pt}%
%%%>
\begin{comment}
:Title: Commutative diagram with crossing edges
:Tags: Matrices; Diagrams
:Author: Stefan Kottwitz
:Slug: commutative-diagram
\end{comment}
\begin{document}
\begin{tikzpicture}
\matrix (m) [matrix of math nodes, row sep=3em,
column sep=3em]{
& \|\cdot\| & & \|\cdot\|^* \\
\Lambda(\|\cdot\|) & & \Lambda(\|\cdot\|)^* & \\
& \|\cdot\|/S & & (\|\cdot\|/S)^* \\
\Lambda(\|\cdot\|/S) & & \Lambda(\|\cdot\|/S)^* & \\};
\path[-stealth]
(m-1-2) edge node [fill=white] {dual} (m-1-4)
edge node [fill=white] {exterior} (m-2-1)
edge [densely dotted] node [pos=0.75,fill=white] {quotient}(m-3-2)
(m-1-4) edge node [fill=white] {subspace} (m-3-4)
edge node [fill=white] {exterior} (m-2-3)
(m-2-1) edge [-,line width=6pt,draw=white] (m-2-3)
edge node [pos=0.75,fill=white] {dual} (m-2-3)
edge node [fill=white] {quotient} (m-4-1)
(m-3-2) edge [densely dotted] node [pos=0.75,fill=white] {dual} (m-3-4)
edge [densely dotted] node [fill=white] {exterior} (m-4-1)
(m-4-1) edge node [fill=white] {dual} (m-4-3)
(m-3-4) edge node [fill=white] {exterior} (m-4-3)
(m-2-3) edge [-,line width=6pt,draw=white] (m-4-3)
edge node [pos=0.75,fill=white] {subspace} (m-4-3);
\end{tikzpicture}
\end{document}
