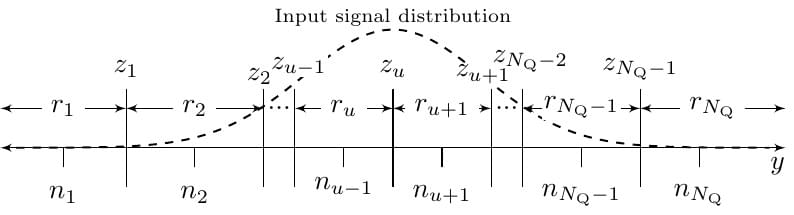

Hypothetical uniform quantizer
作者:
Lucas dos Santos Costa
最近上传:
5 年前
许可:
Creative Commons CC BY 4.0
摘要:
Hypothetical uniform quantizer standalone class figure.
\begin
Discover why 18 million people worldwide trust Overleaf with their work.
Hypothetical uniform quantizer standalone class figure.
\begin
Discover why 18 million people worldwide trust Overleaf with their work.
%Created by Lucas dos Santos Costa (July/2019)
\documentclass{standalone}
\usepackage{amsmath}
\usepackage{tikz,pgfplots}\pgfplotsset{compat=newest}
\usetikzlibrary{shapes,arrows}
\usetikzlibrary{calc,patterns,decorations.pathmorphing,decorations.markings}
\usetikzlibrary{shadows}
\begin{document}
\begin{tikzpicture}[yscale=1,>=latex']
\draw[<->](-5,0)--(5,0) node [pos=0.99,below] {\ensuremath{y}};
\draw [black,samples=200,domain=-4.8:4.8,dashed,line width=0.25mm] plot (\x, {1.5*exp(-(\x+0)^2/2.6)}); \node at (0,1.65) {{\scriptsize Input signal distribution}};
%
\draw[<->](-5,0.5)--(-3.4,0.5) node[midway,fill=white] {$r_1$};
\draw[-](-4.2,-0.25)--(-4.2,0); \node at (-4.2,-0.6) {$n_1$};
\draw[-](-3.4,-0.5)--(-3.4,0.75); \node at (-3.4,1) {$z_1$};
\draw[<->](-3.4,0.5)--(-1.65,0.5) node[midway,fill=white] {$r_2$};
\draw[-](-2.525,-0.25)--(-2.525,0); \node at (-2.525,-0.6) {$n_2$};
\draw[-](-1.65,-0.5)--(-1.65,0.75); \node[xshift = -0.5mm, yshift = -1mm] at (-1.65,1) {$z_2$};
%
\node at (-1.45,0.5) {...};
%
\draw[-](-1.25,-0.5)--(-1.25,0.75); \node[xshift = 0.5mm, fill = white, anchor = base, inner sep = 0.7pt] at (-1.25,1) {$z_{u-1}$};
\draw[<->](-1.25,0.5)--(-0,0.5) node[midway,fill=white] {$r_{u}$};
\draw[-](-0.625,-0.25)--(-0.625,0); \node[yshift = +1mm] at (-0.625,-0.6) {$n_{u-1}$};
\draw[-](0,-0.5)--(0,0.75); \node[fill=white] at (0,1) {$z_{u}$};
\draw[<->](0,0.5)--(1.25,0.5) node[midway,fill=white] {$r_{u+1}$};
\draw[-](0.625,-0.25)--(0.625,0); \node at (0.625,-0.6) {$n_{u+1}$};
\draw[-](1.25,-0.5)--(1.25,0.75); \node[xshift = -1mm, yshift = -1mm, fill = white, anchor = base, inner sep = 0.7pt] at (1.25,1) {$z_{u+1}$};
%
\node at (1.45,0.5) {...};
%
\draw[-](1.65,-0.5)--(1.65,0.75); \node[xshift = +1mm, yshift = +1mm] at (1.65,1) {$z_{N_\text{Q}-2}$};
\draw[<->](1.65,0.5)--(3.15,0.5) node[midway,fill = white, anchor = base, inner sep = 0.7pt] {$r_{N_\text{Q}-1}$};
\draw[-](2.4,-0.25)--(2.4,0); \node at (2.4,-0.6) {$n_{N_\text{Q}-1}$};
\draw[-](3.15,-0.5)--(3.15,0.75); \node at (3.15,1) {$z_{N_\text{Q}-1}$};
\draw[<->](3.15,0.5)--(5,0.5) node[midway, fill = white] {$r_{N_\text{Q}}$};
\draw[-](3.9,-0.25)--(3.9,0); \node at (3.9,-0.6) {$n_{N_\text{Q}}$};
\end{tikzpicture}
\end{document}
